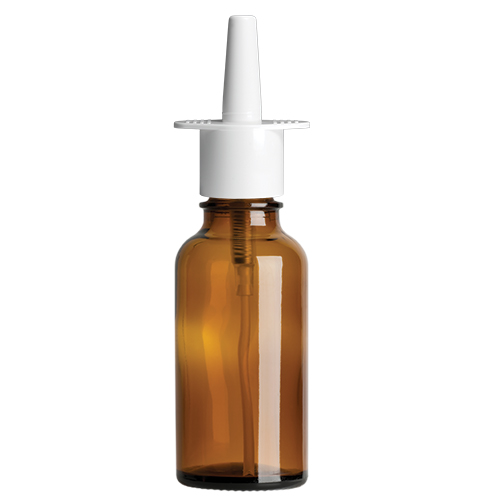

Healthcare HiMark® Sprayer
Finding the right metered dispensing system has never been easier.
One of our most versatile pumps, HiMark® is suitable for many types of products, including difficult, viscous and aggressive formulations. It is available in a wide range of dimensions, finishes, spray angles and outputs.
Drug Master File (DMF #28564)
Closures
| col1 | col2 | col3 | col4 | col5 | col6 | col7 | col8 | col9 | col10 | col11 |
|---|---|---|---|---|---|---|---|---|---|---|
Snap-on | 20 | |||||||||
Crimp (AG) | Ferrule 13, 15, 18, 20 mm | |||||||||
Screw (AV) | G.C.M.I. 15-415, G.C.M.I. 18-415, G.C.M.I. 20-410, G.C.M.I. 20-415 | G.C.M.I. 22-410, G.C.M.I. 22-415, G.C.M.I. 22-410, G.C.M.I. 24-415 | DIN RD 18 SH, PP 18 Pilfer Proof, BV-111, Pharma 22 |
Actuators
| col1 | col2 | col3 | col4 | col5 | col6 | col7 | col8 | col9 | col10 | col11 |
|---|---|---|---|---|---|---|---|---|---|---|
| ER 13 | ER 15 | ERT 13 | ERT 15 | MW 5 | MW 19 | ERM (cream) | Elite (cream) | MTA** | ERF 20 | |
Snap-on | • | • | • | • | • | • | • | |||
AG | • | • | • | • | • | • | • | • | • | • |
Adapters
| col1 | col2 | col3 | col4 | col5 | col6 | col7 | col8 | col9 | col10 | col11 |
|---|---|---|---|---|---|---|---|---|---|---|
 |  |  |  |  |  | |||||
Dose Counter | MTA5 | ATA19 | Round Nasal | Square Nasal | Oval Nasal |
Output
0.050, 0.070, 0.100, 0.130, and 0.190 ml
Spray and Cream Actuators*
ER Series Actuators
Nebuliser insert ensures a fine and uniform spray
ERT Series Actuators
Nozzle for dispensing cream and lotion products
Nozzle length: C2=2 mm, C3=3 mm or C5=5 mm
*These actuators can be supplied assembled onto the pump or separately
Special Throat Actuator
**MTA
Fitted with a nebuliser insert
